Single acting pneumatic cylinders
ISO 21287 compact |
|
Compact cylinders are smaller than standard cylinders and they are suitable especially, when there isn‘t enough space for standard cylinder. Dimensions of mounting holes meets international standards ISO 21287, ISO 6431, VDMA 24562 and NF E 49003.1, that is why standard mounting accessories can be used. Cylinders aren‘t equipped with cushioning. |
Order codes | Technical data | Dimensions | Accessories | Data sheet (PDF) | Technical information |

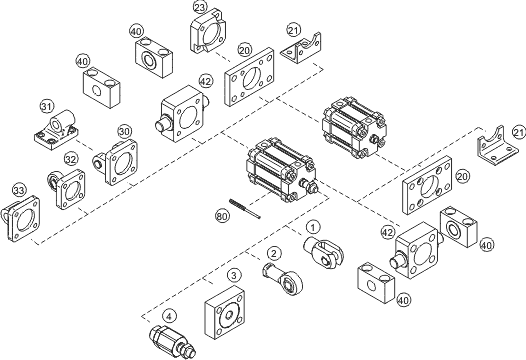

Accessories
*) Please check dimensions of thread on cylinder and accessories for piston rod, before you order it (for example: compact cylinder piston dia. 40 mm has thread M10x1,25 on piston rod, piston rod clevis for cylinder dia. 40 has thread M12x1,25, so it is necessary to order picton rod clevis for cylinder dia. 25/32, where is thread M10x1,25).
|
|
