Solenoid actuated valves
high flow
|
|||||||||
High flow valve series with flow capacity up to 28 000 Nl/min is suitable for fast air supply of big appliances, or higher quantity of appliances which are supplied from common distribution. Valves are pilot operated, using smaller, standard electromagnetic actuated valves ISO 5599/1. These pilot valves are designed for external supply of compressed air, however the common supply is possible, but in this case, please contact our technical dept.
|
Technical data
Series | G1" | G1 1/2" |
Ports | G1/2" |
G3/4" |
Connection of external pressure supply port |
G1/4" | |
Flow capacity [Nl/min] | 16 000 |
28 000 |
Working pressure [MPa] | 0 to 1,0 when external pilot supply is used |
|
Pilot pressure range |
0,2 to 0,7 | |
Power input [W/VA] | 2,5W for DC voltade, 6/4,9 VA for AC voltage (inrush/hold) | |
Time response [ms] | 60 |
70 |
Coil voltage tolerance |
±10% | |
Temperature range [°C] | medium temperature max. 50, ambient temperature -20 to +50 |
Notes for connecting of valve

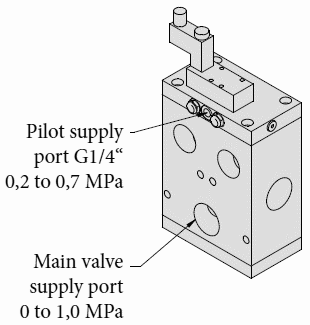

Valves are designed for independent, external air pilot supply (port X). It is not recommended, to merge air supply for main valve and for pilot valve, because a big flow through main valve may cause serious dropping of pressure for pilot valve and malfunction may occur.
