Double acting pneumatic cylindersDIN ISO 6431, VDMA 24562 with integrated grooves |
|
| Cylinders are designed to meet the specifications of international standards ISO 6431, VDMA 24562 and NF E 49003.1, that is why it can replace pneumatic cylinder, which is made by any producer to these standards. This series has a profile with 2 integrated T-slots for direct mounting of position sensors. The cylinders can work in higher temperatures by request. Fully adjustable cushioning at end of stroke is available. The cylinders can be delivered in explosion proof version (Ex , see details in ATEX options). |
| Order codes | Technical data | Dimensions | Accessories | Data sheet (PDF) | Technical information |

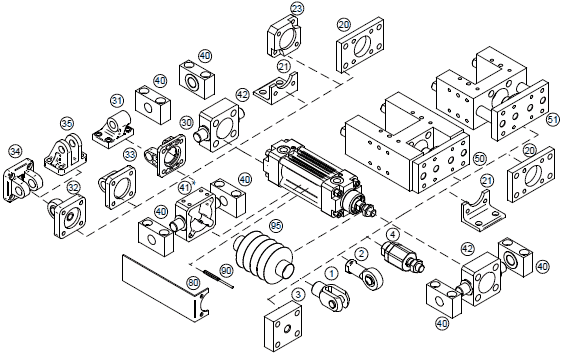

Accessories
*) When using a pivot pin, we recommend a cylinder with a option 53, where the tie-rods are hidden within the profile,providing a more secure fixation of the pivot pin in place. |
|
